Automatic transmission filter + electrical plate

Description

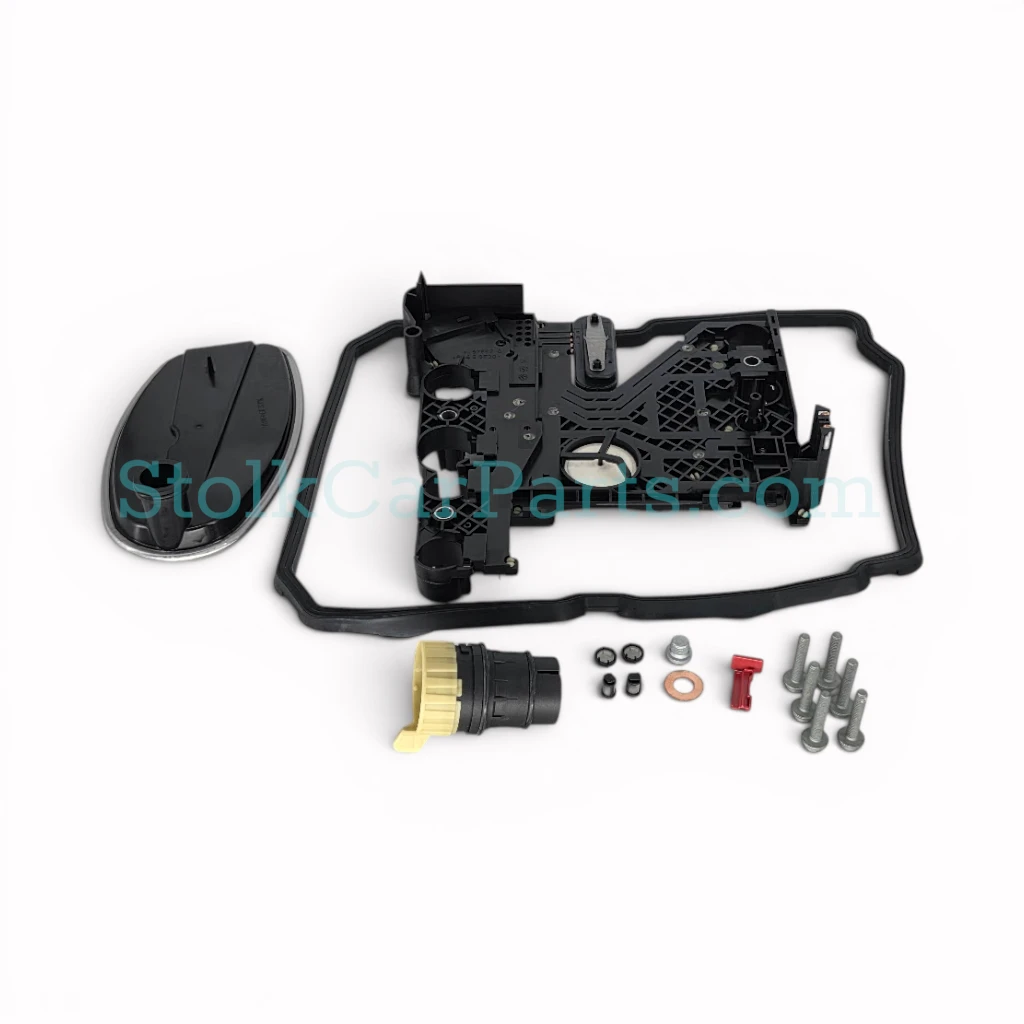

Automatic transmission filter + electrical plate, connector, gasket, safety pin, oil seal, mounting bolts – Mercedes R129 SL W140 202 204 204 208 209 210 etc.

This complete filter set for the automatic transmission ensures optimal filtration of the transmission oil and a reliable seal of the entire system. The set includes parts for the mechatronics, sump, drain, and mounting, allowing for complete maintenance of the automatic transmission.

Contents of set

1. Electrical kit for automatic transmission control unit

1. Method: electric
2. Dimensions: 250 x 250 millimeters
3. Thickness: 100 millimeters

2. Gearbox oil filter automatic transmission

1. Filter type: sieve
2. Width: 113 millimeters
3. Length: 193 millimeters
4. Height: 52.5 millimeters
5. Outer diameter: 28 millimeters
6. Material: fleece and steel

3. Connector for automatic transmission control unit

1. Dimensions: 85 x 55 x 45 millimeters
2. Installation side: drive side

4. Automatic transmission oil pan screws (6 pieces)

1. Point of engagement: inside Torx
2. External thread: M6 x 1
3. Length under head: 32 millimeters

5. Sealing ring oil drain screw transmission

1. Inner diameter: 10 millimeters
2. Outer diameter: 20 millimeters
3. Material: copper
4. Height: 1 millimeter

6. Screw cap

1. Point of application: internal hexagon
2. Outer diameter: 14 millimeters
3. External thread: M10 x 1
4. Length: 12 millimeters
5. Material: steel
6. Surface: zinc lamella coating
7. Quality rating: 5.8

7. Hydraulic filter set mechatronics (2 pieces)

1. Outer diameter: 12 millimeters
2. Height: 6 millimeters
3. Filter type: sieve

8. Hydraulic filter set mechatronics (2 pieces)

1. Outer diameter: 8 millimeters
2. Height: 12.5 millimeters
3. Filter type: sieve

9. Automatic transmission oil pan gasket

1. Material: ACM (polyacrylic rubber)

10. Safety pin for transmission oil dipstick

1. Width: 16 millimeters
2. Height or thickness: 10 millimeters
3. Length: 28 millimeters
4. Color: red

Suitable for the following Mercedes models

• R170 SLK
• R230 SL
• R129 SL
• R199 SLR
• W140 S-Class
• C140 S-Class Coupé
• W220 S-Class
• V220 S-Class
• W221 S-Class
• V221 S-Class
• C215 S-Class Coupé
• C216 S-Class Coupé
• W202 C-Class
• S202 C-Class Estate
• W203 C-Class
• S203 C-Class Estate
• CL203 C-Class Sports Coupé
• W204 C-Class
• S204 C-Class Estate
• C208 CLK
• A208 CLK Convertible
• C209 CLK
• A209 CLK Convertible
• C219 CLS
• W210 E-Class
• S210 E-Class Estate
• W211 E-Class
• S211 E-Class Estate
• VF211 E-Class Chassis
• W212 E-Class
• S212 E-Class Estate
• C207 E-Class Coupé
• A207 E-Class Convertible
• W463 G-Class
• W163 M-Class

Important

• After installation, check that the plug is correctly locked and that there are no leaks or error messages.
• Carefully clean the area around the transmission before disassembly and reassembly to prevent contamination of the gearbox.
• The installation of the guide plate must be carried out in accordance with the transmission manufacturer's instructions.
• For the correct operation of the automatic transmission, precise mounting and positioning of the guide plate is necessary.
• After installation, it is recommended to read out the transmission and check or clear any fault codes.
• Work on the automatic gearbox should preferably be carried out by qualified personnel with knowledge of Mercedes automatic transmissions.
• Incorrect installation can lead to shifting problems, limp mode, or transmission control fault messages.

Tip

Change the automatic transmission oil not only according to mileage intervals, but at least every 8 years. Even with infrequent driving, the transmission oil ages, causing its lubricating and protective properties to diminish. Regular changes contribute to a longer lifespan and reliable operation of the automatic transmission.

Always check before purchase and installation whether the part is suitable and equivalent based on photos, description, and specifications; installed or used parts cannot be returned.
